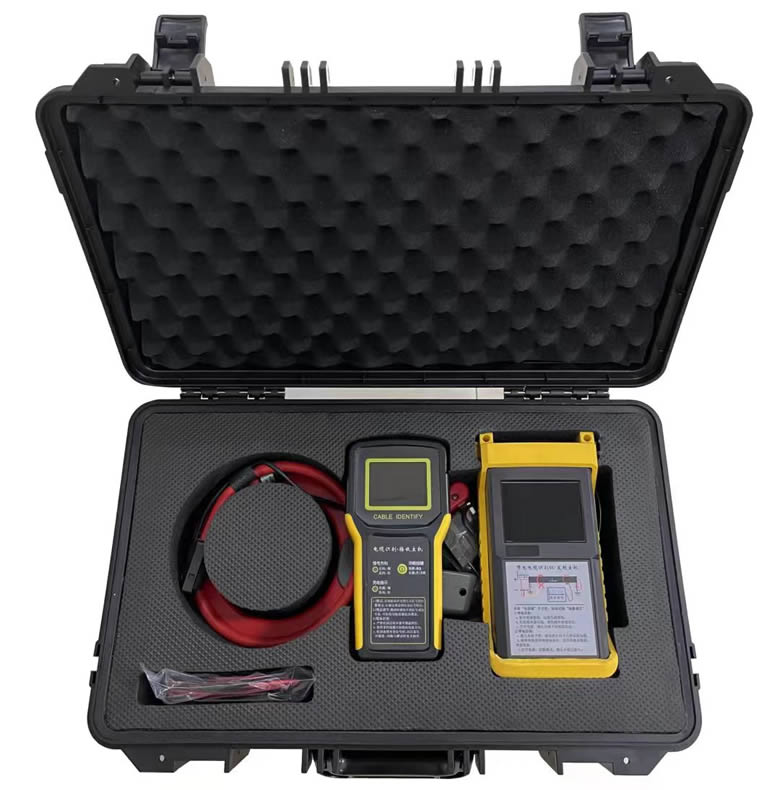

AJQF-150 Cable identifier
| launch host |
receiving host |
|
Charging voltage：DC12.6V |
Charging voltage：DC12.6V |
|
Power consumption：≤3W |
Power consumption：≤1W |
|
Launch caliper inner diameter：125mm |
Identification method: direction, amplitude, interval, triple judgment basis |
|
Output pulse voltage：≈800V |
Loop resistance range： power failure--Ground loop resistance≤5kΩ charged--Ground loop resistance≤500Ω |
|
Signal interval：≈2S |
|
|
working hours：≥8h |
working hours：≥12h |
|
ambient temperature：-35℃～+55℃ |
ambient temperature：-35℃～+55℃ |
|
ambient temperature：≤95%RH |
ambient temperature：≤95%RH |
|
Chassis size：520mm*350mm*170mm |
|
