AJ590 Portable harmful gas leak detector

1、 Overview

Pump suction gas tester is used for rapid detection of various gas concentrations and gas leakage measurements. If the measured value exceeds the alarm threshold, it will emit an audible and visual vibration alarm. Using a 2.6-inch high-definition color screen for real-time display and utilizing gas sensors from well-known industry brands for high-precision gas measurement. The main detection principles include: electrochemistry, infrared spectroscopy, catalytic combustion, thermal conductivity, PID photoionization, etc. Advanced circuit anti-interference design, mature kernel algorithm processing, beautiful appearance design, have obtained multiple software copyrights and appearance design patents. Suitable for detecting gas concentration in pipelines, confined spaces, and atmospheric environments; Detect gas leaks or high concentration single gas purity with various background gases such as nitrogen or oxygen. There are over 500 types of gases for detection.

2、 Technical parameters

Detect gas		Toxic gases, oxygen, carbon dioxide, flammable and explosive gases, TVOC, etc., 1-6 gases can be freely combined.
Application occasions		Petroleum, chemical industry, medicine, environmental protection, gas distribution, warehousing, flue gas analysis, air treatment and other occasions that require portable and rapid detection of gas concentration.
Detection range		0-1,10, 100, 1000, 5000, 50000ppm, 200mg/L, 100%LEL, 20%, 50%, 100%VolOptional, other ranges can be customized.
resolution		0.1ppm OR 0.01ppm(0-10ppm);0.1ppm(0-100ppm),1ppm (0-1000ppmand above), 0.1mg/L (0-200%mg/L),0.1%LEL, 0.1%Vol(0-100vol), 0.01%Vol(0-10vol).
Detection principle		Electrochemistry, catalytic combustion, infrared, thermal conductivity, PID photoion, etc., depending on gas type, range, on-site environment and user needs.
Sensor life		Electrochemical principle 2-3 years; Infrared principle 2-4 years; Catalytic combustion for 2-3 years; Thermal conductivity for 2-5 years; PID photoionization takes 2-3 years.
Maximum allowable error value		≤±10%FS (Maximum allowable error value)
linearity		≤±2%	Repeatability	≤±2%Uncertainty		≤±2%
response time		T90≤30S			recovery time	≤30S
working environment		Temperature: -10℃~+60℃,Humidity:≤0~95%RH,Built-in filter allows use in high humidity or dusty environments.
Sample gas temperature		-10℃~+60℃
Temperature and humidity measurement		Optional: temperature-10℃-+60℃;Humidity0-100%RH
working voltage		DC 3.7V , 5000mALarge capacity rechargeable polymer lithium battery.
Display mode		2.6-inch high-definition color screen.
Detection	Built in pump suction measurement with a flow rate of 500 milliliters per minute. The calibrated flow rate should be greater than 500 milliliters per minute, and a three-way pipe should be connected for diversion to ensure that excess gas is discharged from the bypass.
Alarm method	Sound and light alarm, vibration alarm, sound and light+vibration alarm, can be set to turn off the alarm.
alarm volume	70-92decibel。
communication interface	USB (Charging and communication)
Data Storage	Optional 2GB data storage capacity.
protection grade	IP65.
Explosion proof type	Intrinsically Safe
Explosion proof sign	Exd IlC T6
External dimensions	190 x 80 x 58mm(LWH)
weight	458g

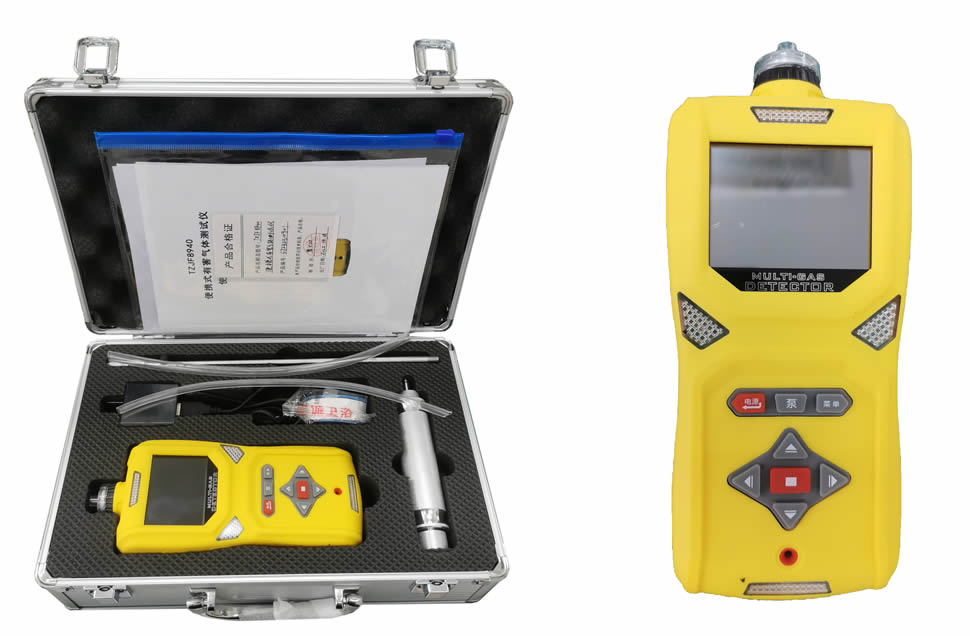

Standard accessory	Instruction manual, certificate of conformity, warranty card, USB charger (including data cable), high-end aluminum alloy instrument box, back clip, moisture and dust filter, hanging rope.
Optional items	Optional items include temperature and humidity measurement function, 0.5m metal sampling tube handle (1-10 meter hose, standard length 1 meter).
